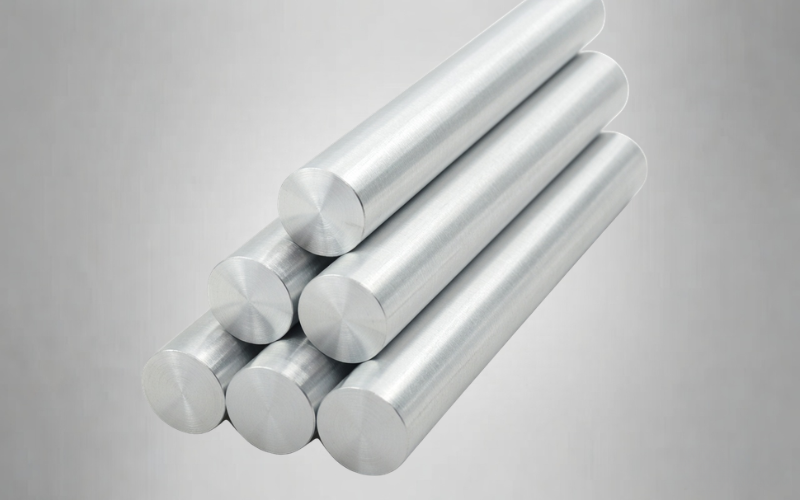

Monel Nickel Alloy 400 Bars:

Alloy 400 is a nickel-copper alloy with good strength and excellent corrosion resistance in a range of media especially sea water, hydrofluoric acid, sulfuric acid, and alkalis.

Monel Nickel Alloy 400, Also Known as Monel 400, Is a Nickel-Copper Alloy That Is Widely Used in Various Industrial Applications. It Is Composed of Approximately 67% Nickel and 23% Copper, Along with Small Amounts of Iron, Manganese, Carbon, and Silicon.
Monel 400 Is Known for Its Excellent Corrosion Resistance Properties, Particularly in Marine and Chemical Environments. It Is Also Highly Resistant to Stress Corrosion Cracking, Pitting, and Erosion. These Properties Make It a Popular Choice for Marine and Oil and Gas Applications, Including Seawater Valves, Pumps, and Piping Systems.
in Addition to Its Corrosion Resistance Properties, Monel 400 Is Also Known For Its High Strength and Good Ductility. It Can Be Easily Fabricated, Welded, and Formed into Various Shapes and Sizes. These Properties Make It a Suitable Material for Various Industrial Applications, Including Heat Exchangers, Pumps, and Valves.
One of the Unique Properties of Monel 400 Is Its Resistance to Hydrofluoric Acid, Making It an Ideal Choice for Applications Involving This Highly Corrosive Acid. It Is Also Resistant to Sulfuric Acid and Other Acidic Solutions, Making It an Excellent Choice for Chemical Processing Equipment.
Overall, Monel 400 Is a Versatile and Reliable Material That Is Widely Used in Various Industrial Applications. Its Excellent Corrosion Resistance Properties, High Strength, and Good Ductility Make It an Ideal Choice for Marine, Oil and Gas, and Chemical Processing Applications.
Although the grade can be tempered or cold worked to increase its properties, Alloy 400 (2.4360) is supplied in the annealed condition as standard.

Applications of Monel Nickel Alloy 400 Bars:

Monel Nickel Alloy 400 Is a Versatile Material That Finds a Wide Range of Applications in Various Industries. Here Are Some of the Most Common Applications of Monel 400:

Marine Applications

Monel 400 Is Highly Resistant to Corrosion in Seawater and Is, Therefore, Used Extensively in the Marine Industry for Valves, Pumps, Propeller Shafts, and Other Components. It Is Also Used in the Construction of Offshore Platforms, Where It Can Withstand Harsh Environments and Saltwater Corrosion.

Chemical Processing Equipment

Monel 400 Is Highly Resistant to Corrosion in Various Acidic and Alkaline Environments, Making It an Ideal Material for Chemical Processing Equipment Such as Pumps, Valves, and Heat Exchangers. It Is Commonly Used in the Production of Hydrochloric Acid, Sulfuric Acid, and Other Highly Corrosive Chemicals.

Oil and Gas Applications

Monel 400 Is Also Used Extensively in the Oil and Gas Industry Due to Its High Resistance to Corrosion and Erosion. It Is Commonly Used in Downhole Equipment, Offshore Drilling Equipment, and Pipelines.

Aerospace Industry

Monel 400 Is Also Used in the Aerospace Industry for Various Applications Such as Landing Gear Components, Aircraft Engines, and Fasteners. Its High Strength-To-Weight Ratio, Excellent Corrosion Resistance, and Good Ductility Make It an Ideal Material for These Applications.

Electrical and Electronic Components

Monel 400 Is Also Used in the Manufacturing of Electrical and Electronic Components Due to Its Good Electrical Conductivity and Resistance to Corrosion. It Is Commonly Used in Switchgear Components, Connectors, and Terminals.

Medical Industry

Monel 400 Is Also Used in the Medical Industry for Certain Applications Due to Its Good Biocompatibility and Resistance to Corrosion. It Is Commonly Used in Dental and Orthopedic Implants, Surgical Instruments, and Other Medical Devices.
Overall, Monel 400’s Excellent Corrosion Resistance, High Strength, and Good Ductility Make It an Ideal Material for Various Industrial Applications, Particularly in Marine, Chemical, Oil and Gas, Aerospace, and Medical Industries.

KEY FEATURES OF MONEL NICKEL ALLOY 400

Here Are the Key Features of Monel Nickel Alloy 400 in Short Pointers:
  • High Corrosion Resistance in Seawater, Acids, and Alkalis
  • Maintains Strength at High Temperatures
  • Good Ductility and Toughness
  • Excellent Resistance to Stress Corrosion Cracking and Pitting
  • Good Electrical Conductivity
  • Resistant to Hydrofluoric Acid
  • Easily Weldable and Formable
  • Suitable for Various Applications in Marine, Chemical, Oil and Gas, Aerospace, and Medical Industries.

SPECIFICATIONS FOR MONEL NICKEL ALLOY 400

Chemical Composition:

  • Nickel (Ni): 63.0% Min.
  • Copper (Cu): 28.0-34.0%
  • Iron (Fe): 2.5% Max.
  • Manganese (Mn): 2.0% Max.
  • Carbon (C): 0.3% Max.
  • Silicon (Si): 0.5% Max.

Mechanical Properties:

  • Tensile Strength: 70 Ksi (483 Mpa) Minimum
  • Yield Strength: 28 Ksi (193 Mpa) Minimum
  • Elongation: 35% Minimum

Physical Properties:

  • Density: 8.83 G/cm³
  • Melting Point: 1350-1390°c (2460-2530°f)
  • Electrical Conductivity: 34% Iacs

Standards:

  • Astm B127/b165/b164/b564
  • Asme Sb-127/sb-165/sb-164/sb-564
It’s Important to Note That Specific Applications May Require Different or Additional Specifications Beyond Those Listed Above

Specifications for Nickel - Alloy 400 UNS No 4400

This specification of alloy 400 nickel alloy bar, UNS N04400 in the cold-worked and stress-relived condition.

Chemical Composition :
  C Mn Cu Si S Ni Fe
Min. — — 28.0 — — 63.00 —
Max. 0.03 2.0 34.0 0.05 0.024 Bal. 2.5
Material Properties
  Yield Strength
Ksi (MPa)		 Tensile Strength
ksi (MPa)		 Elongation
Min. 70.0 (483) 90.0 (621) 15%
Max. 100.0 (690) 130.0 (896) —

Hardness : 35 HRC maximum

FREQUENTLY ASKED QUESTIONS

Here Are Some Frequently Asked Questions (Faqs) About Monel Nickel Alloy 400:
Monel Nickel Alloy 400 Is a Nickel-Copper Alloy That Contains High Levels of Nickel and Copper. It Is Known for Its Excellent Resistance to Corrosion and High Strength-To-Weight Ratio, Making It Suitable for a Wide Range of Applications.
Monel Nickel Alloy 400 Is Used in a Variety of Applications, Including Marine Engineering, Chemical Processing, Oil and Gas Industries, Electrical and Electronic Industries, Aerospace, and Medical Industries.
The Key Features of Monel Nickel Alloy 400 Include High Corrosion Resistance, High Strength-To-Weight Ratio, Good Ductility and Toughness, Excellent Resistance to Stress Corrosion Cracking and Pitting, Good Electrical Conductivity, and Thermal Stability.
The Mechanical Properties of Monel Nickel Alloy 400 Include a Tensile Strength of 70 Ksi (483 Mpa) Minimum, a Yield Strength of 28 Ksi (193 Mpa) Minimum, and an Elongation of 35% Minimum.
The Chemical Properties of Monel Nickel Alloy 400 Include a Nickel Content of 63.0% Minimum, a Copper Content of 28.0-34.0%, an Iron Content of 2.5% Maximum, a Manganese Content of 2.0% Maximum, a Carbon Content of 0.3% Maximum, and a Silicon Content of 0.5% Maximum.
The Melting Point of Monel Nickel Alloy 400 Is Between 1350-1390°c (2460-2530°f).
Yes, Monel Nickel Alloy 400 Is Easily Weldable and Formable, Which Makes It Easy to Work with and Suitable for Applications That Require Complex Shapes.
The Standards for Monel Nickel Alloy 400 Include Astm B127/b165/b164/b564 and Asme Sb-127/sb-165/sb-164/sb-564.
